DSC 3091- Advanced Statistics Applications I

Web Scraping using R

Department of Statistics and Computer Science

Accessing Data from Websites

  • Data Scientists need the skill to get the right data for the problem that they want to solve.

  • In many practical situations, an already prepared database may not exist, and they may have to pull data from the right sources.

  • For this purpose, Web Scraping and APIs are used.

Web Scraping

  • Although many websites contain some important data, the users cannot download them directly.

  • Most of these websites don’t provide APIs, and one way to get this data is to manually copy and paste, which is a tedious and time-consuming method.

  • Instead, web-scraping can be done, which is an automatic process of data extraction from websites.

  • Using web-scraping one can convert the data that present in unstructured format (HTML tags) over the web to the structured format which can easily be accessed and used.

Web Scraping

  • Web Scraping is done with the help of software called web scrapers.

  • They automatically load and extract data from the websites based on user requirements.

  • A web page may have text, images, links etc., and the main languages used to build web pages are called Hypertext Markup Language (HTML), Cascasing Style Sheets (CSS) and Javascript.

Web Scraping

  • A knowledge of HTML and CSS will be an added advantage for web-scraping.

  • To view the underline codes on a web page in Chrome, simply click Ctrl+Shift+C in Windows which opens up the Elements console.

Web Scraping

  • However, if you don’t have the technical knowledge of HTML and CSS, install the Chrome Extension of Selector Gadget (https://selectorgadget.com/) software.

  • Using this Chrome extension, you can select the necessary HTML and CSS tags to perform Web scraping

Example

The 100 most popular feature films released in 2016 are given in IMDb website (https://www.imdb.com/search/title/?count=100&release_date=2016,2016&title_type=feature). To scrape the data in this site, we use the commonly used web Scraping package in R, i.e. rvest, which is one of the tidyverse packages introduced by Hadley Wickham.

library('rvest')
#Read HTML code of the website
webpage = read_html("http://www.imdb.com/search/title?count=100&release_date=2016,2016&title_type=feature")

First, we scrape the rank of the film which are given from 1 to 100 as in 2016 list.

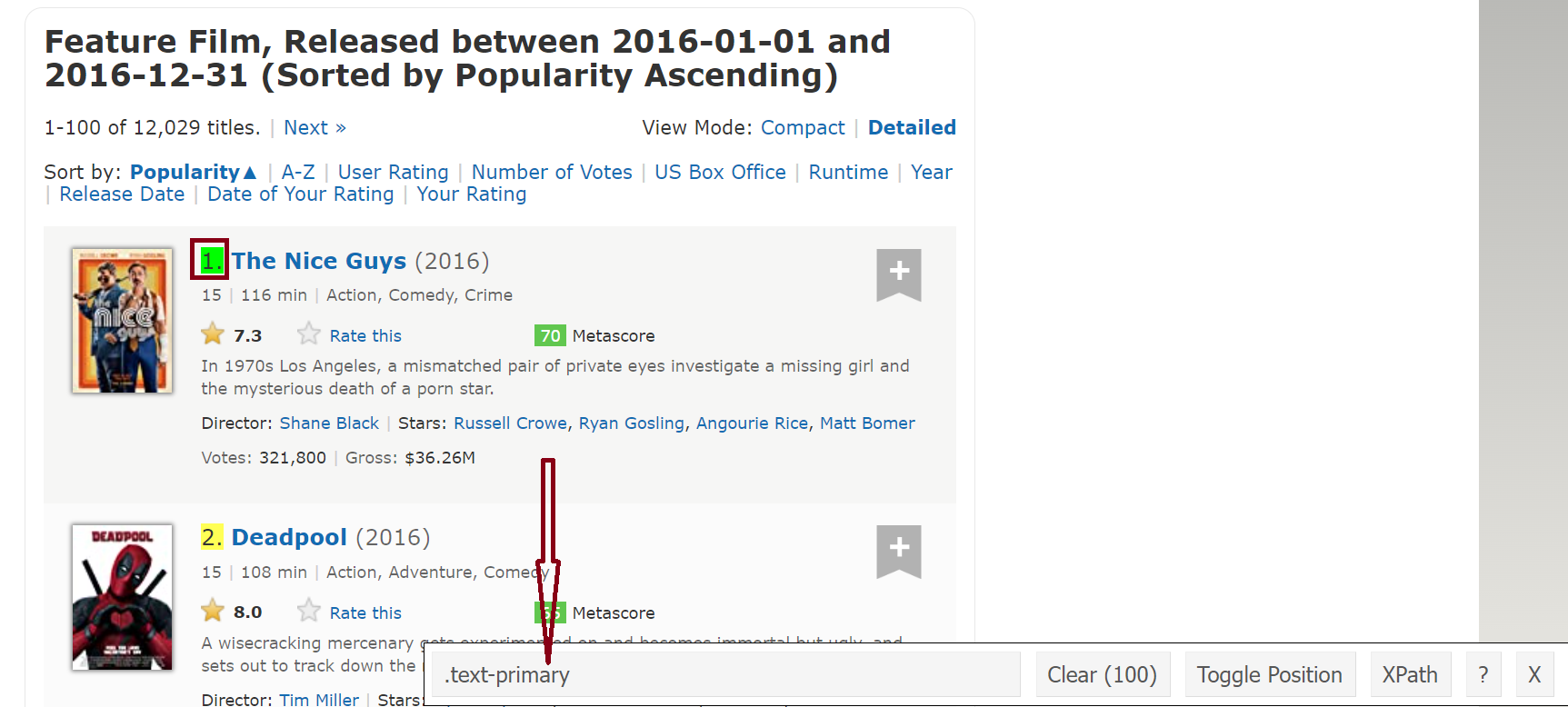

Click the selector gadget Chrome extension, and then click the rankings field. Then, copy the corresponding CSS selector shown in box at the bottom. In this case, it is .text-primary.

Now, we use this CSS selector to get all the rankings as below:

rank <- html_nodes(webpage,'.text-primary')
#Convert the ranks to text
rank_dat <- html_text(rank)
head(rank_dat)
[1] "1." "2." "3." "4." "5." "6."
# Convert data to nemeric
rank_dat <-as.numeric(rank_dat)
head(rank_dat)
[1] 1 2 3 4 5 6

Try to scrape the title, description, runtime, genre, IMDb ratings, votes, director, and actor of the films.

Scraping the title

title <- html_nodes(webpage,'.lister-item-header a')
title_dat <- html_text(title)
title_dat <-as.factor(title_dat)
head(title_dat)
[1] The Nice Guys    Deadpool         Ah-ga-ssi        Suicide Squad
[5] Star Trek Beyond Rogue One
100 Levels: 10 Cloverfield Lane 13 Hours A Cure for Wellness ... Zootopia

Scraping the description

decs <- html_nodes(webpage,'.ratings-bar+ .text-muted')
decs_dat <- html_text(decs)
head(decs_dat)
[1] "\nIn 1970s Los Angeles, a mismatched pair of private eyes investigate a missing girl and the mysterious death of a porn star."
[2] "\nA wisecracking mercenary gets experimented on and becomes immortal but ugly, and sets out to track down the man who ruined his looks."
[3] "\nA woman is hired as a handmaiden to a Japanese heiress, but secretly she is involved in a plot to defraud her."
[4] "\nA secret government agency recruits some of the most dangerous incarcerated super-villains to form a defensive task force. Their first mission: save the world from the apocalypse."
[5] "\nThe crew of the USS Enterprise explores the furthest reaches of uncharted space, where they encounter a new ruthless enemy, who puts them, and everything the Federation stands for, to the test."
[6] "\nIn a time of conflict, a group of unlikely heroes band together on a mission to steal the plans to the Death Star, the Empire's ultimate weapon of destruction."
#removing \n
decs_dat<-gsub("\n","",decs_dat)
decs_dat <-as.factor(decs_dat)
head(decs_dat)
[1] In 1970s Los Angeles, a mismatched pair of private eyes investigate a missing girl and the mysterious death of a porn star.
[2] A wisecracking mercenary gets experimented on and becomes immortal but ugly, and sets out to track down the man who ruined his looks.
[3] A woman is hired as a handmaiden to a Japanese heiress, but secretly she is involved in a plot to defraud her.
[4] A secret government agency recruits some of the most dangerous incarcerated super-villains to form a defensive task force. Their first mission: save the world from the apocalypse.
[5] The crew of the USS Enterprise explores the furthest reaches of uncharted space, where they encounter a new ruthless enemy, who puts them, and everything the Federation stands for, to the test.
[6] In a time of conflict, a group of unlikely heroes band together on a mission to steal the plans to the Death Star, the Empire's ultimate weapon of destruction.
100 Levels: A boy seeks the help of a tree monster to cope with his single mother's terminal illness. ...

Scraping the runtime

runt <- html_nodes(webpage,'.runtime')
runt_dat <- html_text(runt)
head(runt_dat)
[1] "116 min" "108 min" "145 min" "123 min" "122 min" "133 min"
#Remove min from data
runt_dat<-gsub(" min","",runt_dat)
runt_dat <-as.numeric(runt_dat)
head(runt_dat)
[1] 116 108 145 123 122 133

Scraping the genre

genr <- html_nodes(webpage,'.genre')
genr_dat <- html_text(genr)
head(genr_dat)
[1] "\nAction, Comedy, Crime            "
[2] "\nAction, Adventure, Comedy            "
[3] "\nDrama, Romance, Thriller            "
[4] "\nAction, Adventure, Fantasy            "
[5] "\nAction, Adventure, Sci-Fi            "
[6] "\nAction, Adventure, Sci-Fi            "
#removing \n
genr_dat<-gsub("\n","",genr_dat)
#removing excess spaces
genr_dat<-gsub(" ","",genr_dat)
#taking only the first genre of each movie
genr_dat<-gsub(",.*","",genr_dat)
genr_dat <-as.factor(genr_dat)
head(genr_dat)
[1] Action Action Drama  Action Action Action
Levels: Action Adventure Animation Biography Comedy Crime Drama Horror

Scraping the Ratings

rate <- html_nodes(webpage,'.ratings-imdb-rating strong')
rate_dat <- html_text(rate)
rate_dat <-as.numeric(rate_dat)
head(rate_dat)
[1] 7.3 8.0 8.1 5.9 7.0 7.8

Scraping the votes of each films

vote <- html_nodes(webpage,'.sort-num_votes-visible span:nth-child(2)')
vote_dat <- html_text(vote)
head(vote_dat)
[1] "322,310"   "1,017,435" "143,594"   "679,435"   "245,423"   "620,251"
#remove commas and convert to numeric
vote_dat<-gsub(",","",vote_dat)
vote_dat<- as.numeric(vote_dat)
head(vote_dat)
[1]  322310 1017435  143594  679435  245423  620251

Scraping the director of each film

direc <- html_nodes(webpage,'.text-muted+ p a:nth-child(1)')
direc_dat <- html_text(direc)
direc_dat <-as.factor(direc_dat)
head(direc_dat)
[1] Shane Black    Tim Miller     Park Chan-wook David Ayer     Justin Lin
[6] Gareth Edwards
98 Levels: Alessandro Carloni Alex Proyas Ana Lily Amirpour ... Zack Snyder

Scraping the actors of each film

act <- html_nodes(webpage,'.lister-item-content .ghost+ a')
act_dat <- html_text(act)
act_dat <-as.factor(act_dat)
head(act_dat)
[1] Russell Crowe  Ryan Reynolds  Kim Min-hee    Will Smith     Chris Pine
[6] Felicity Jones
91 Levels: Aamir Khan Alexander Skarsgård Amy Adams ... Zoey Deutch

Combine all variables and create a data.frame

films<-data.frame(Rank = rank_dat, Title = title_dat,Description = decs_dat, Runtime = runt_dat,Genre = genr_dat, Rating = rate_dat,
Votes = vote_dat, Director = direc_dat, Actor = act_dat)
str(films)
'data.frame':   100 obs. of  9 variables:
 $ Rank       : num  1 2 3 4 5 6 7 8 9 10 ...
 $ Title      : Factor w/ 100 levels "10 Cloverfield Lane",..: 92 22 5 71 70 65 47 34 25 61 ...
 $ Description: Factor w/ 100 levels "A boy seeks the help of a tree monster to cope with his single mother's terminal illness.",..: 61 24 25 20 84 66 98 100 99 23 ...
 $ Runtime    : num  116 108 145 123 122 133 128 139 115 116 ...
 $ Genre      : Factor w/ 8 levels "Action","Adventure",..: 1 1 7 1 1 1 5 4 1 7 ...
 $ Rating     : num  7.3 8 8.1 5.9 7 7.8 8 8.1 7.5 7.5 ...
 $ Votes      : num  322310 1017435 143594 679435 245423 ...
 $ Director   : Factor w/ 98 levels "Alessandro Carloni",..: 85 91 73 22 51 32 16 61 84 93 ...
 $ Actor      : Factor w/ 91 levels "Aamir Khan","Alexander Skarsgård",..: 73 75 52 90 18 31 74 4 8 3 ...

Visualizing Data

  • Draw a histogram to show the Runtime according to the variable Genre using ggplot2.

  • Draw a scatter plot to identify the Genre having the longest runtime.

  • Draw a scatter plot to identify the genre which has the highest votes within the Runtime of 130-160 mins.

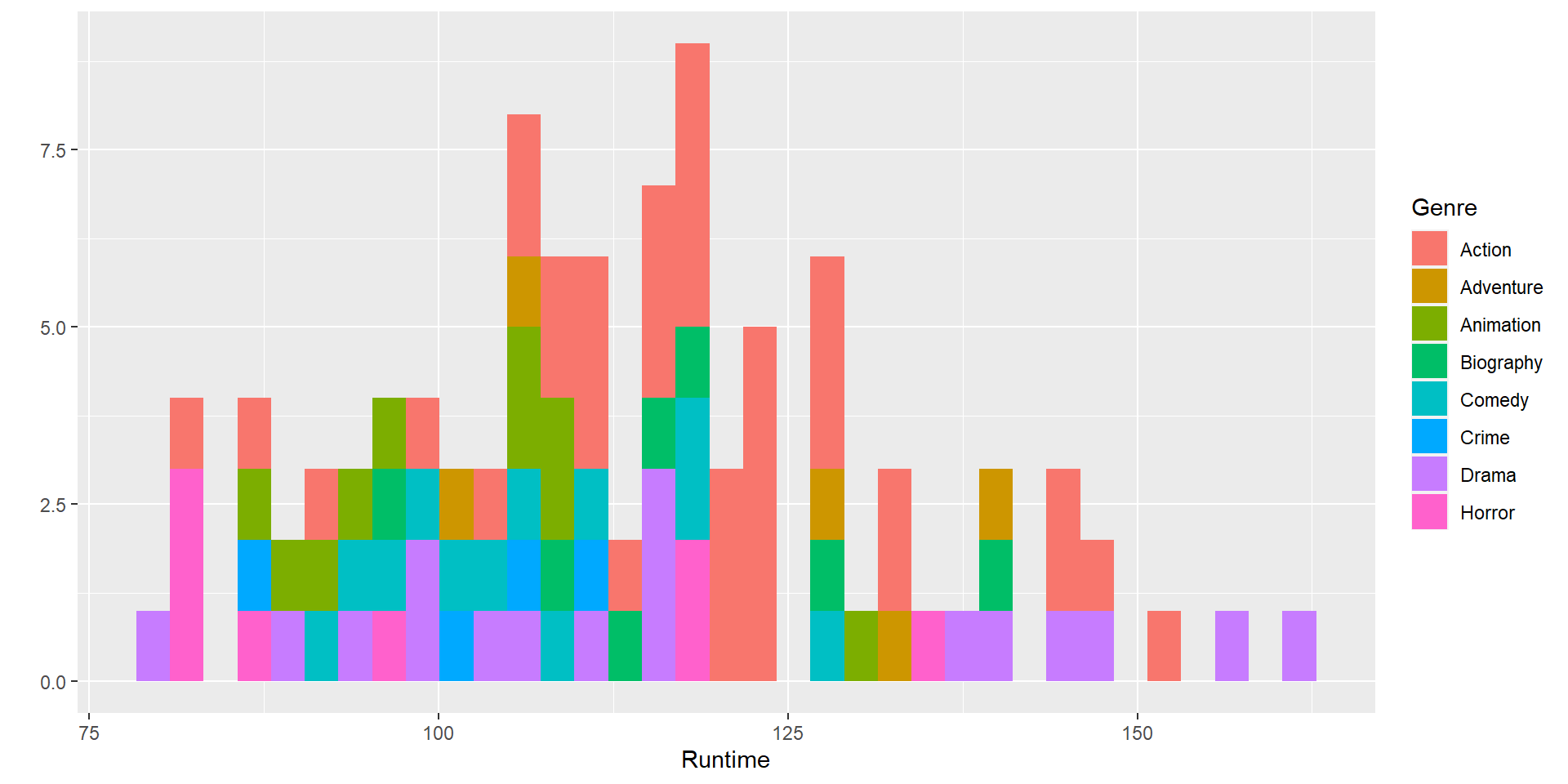

Draw a histogram to show the Runtime according to the variable Genre using ggplot2.

library(ggplot2)
qplot(data = films,Runtime,fill = Genre,bins = 35)

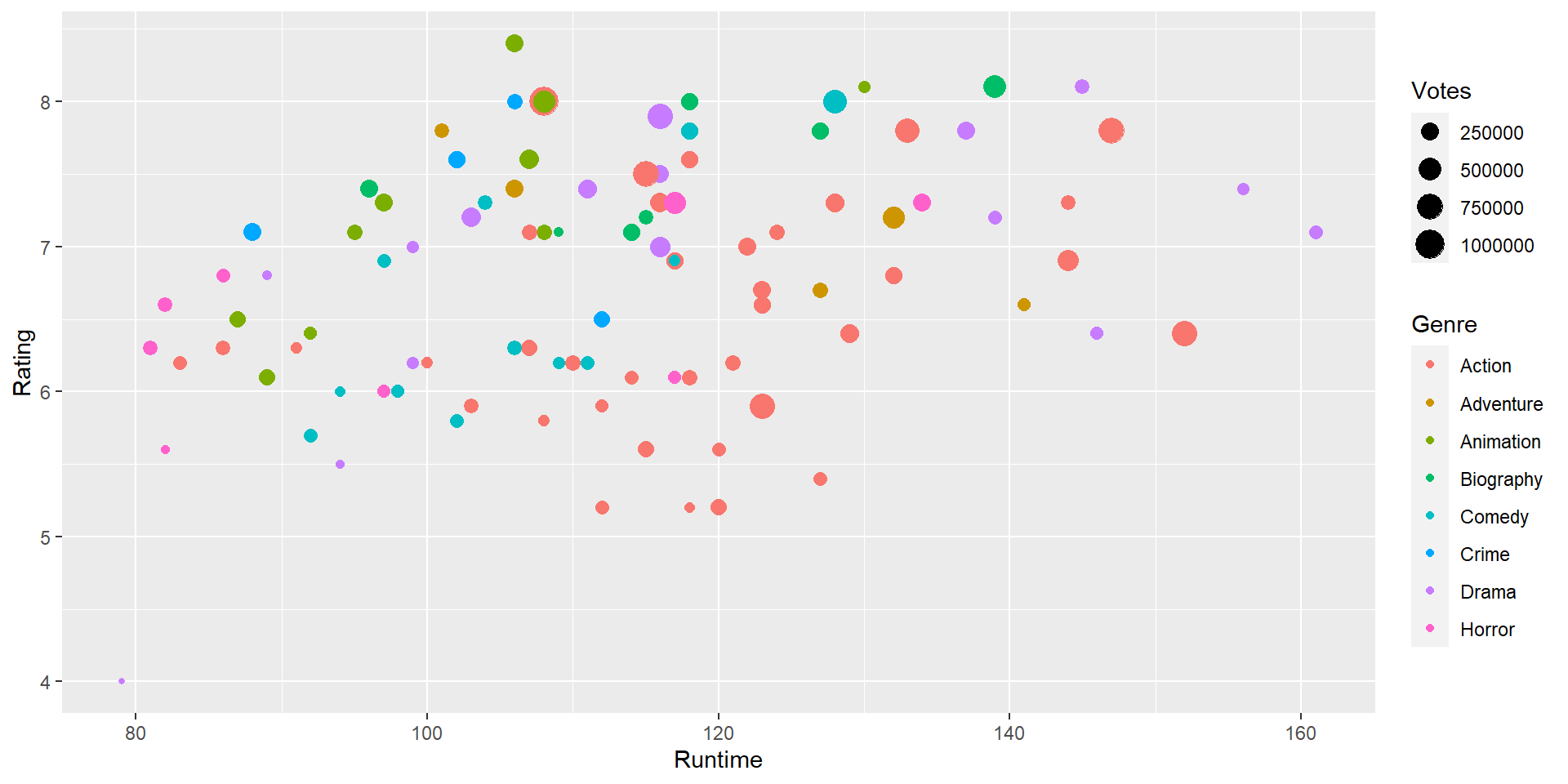

Draw a scatter plot to identify the Genre having the longest runtime.

library(dplyr)
films %>%
  ggplot(aes(x=Runtime,y=Rating))+
  geom_point(aes(size=Votes,col=Genre))

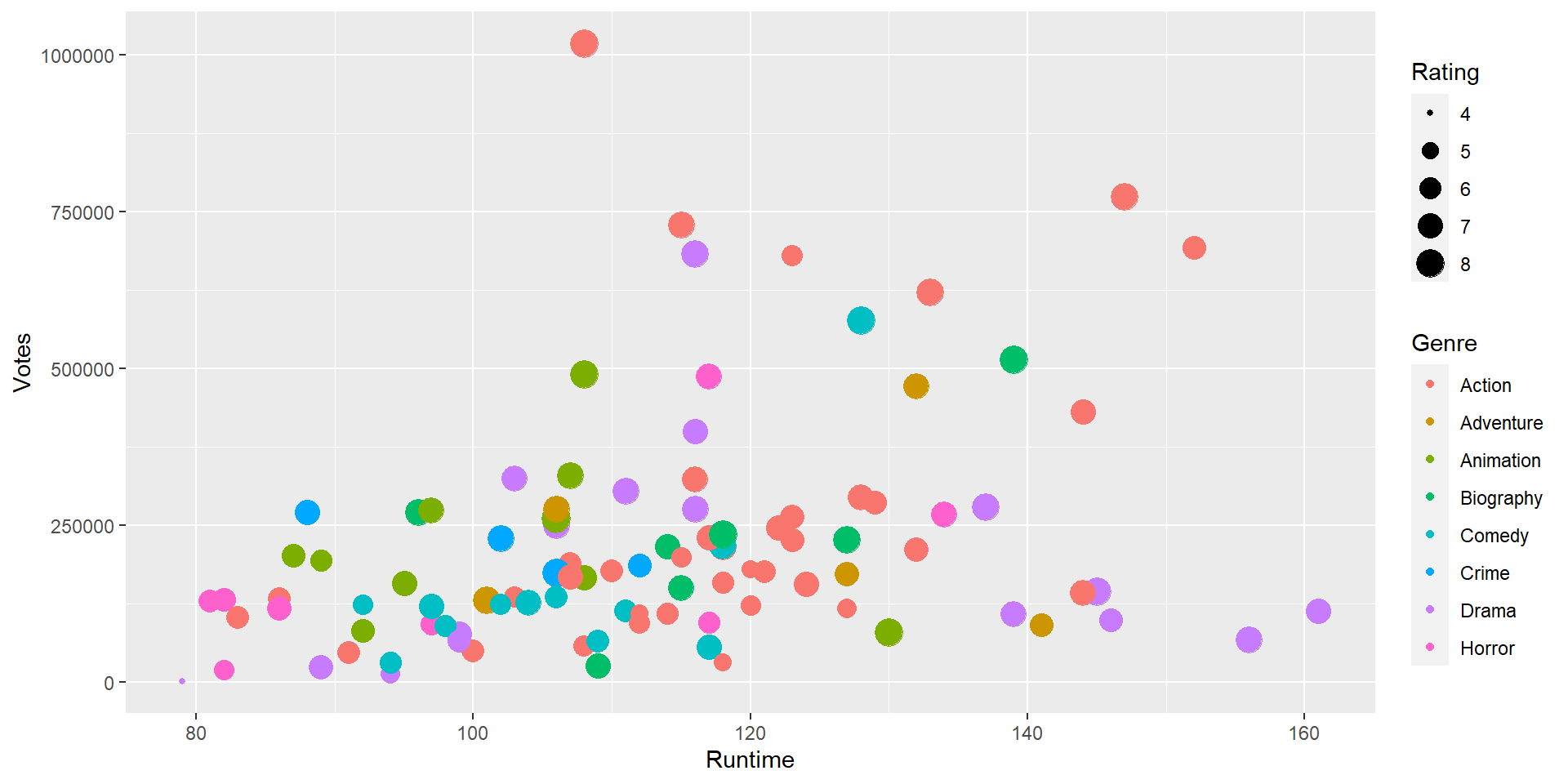

Draw a scatter plot to identify the genre which has the highest votes within the Runtime of 130-160 mins.

library(dplyr)
films %>%
  ggplot(aes(x=Runtime,y=Votes))+
  geom_point(aes(size=Rating,col=Genre))

API (Application Program Interface)

  • An API is a set of methods and tools that allows to query and retrieve data dynamically.

  • Some companies provide free APIs to access the information they stored in their servers.

  • For example, Twitter, Facebook, Reddit, Spotify provide free APIs.

Example with API

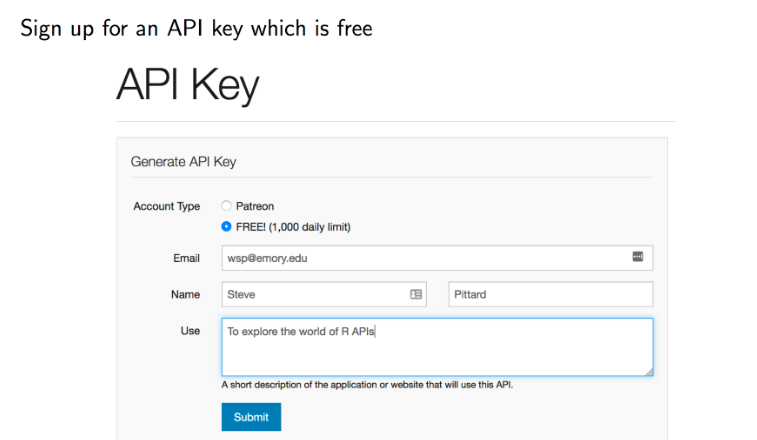

Here we use API of IMDB website (https://www.omdbapi.com/). First, sign up for an API key.

Then, you will get an API key to your email, and activate it.

Click on the API key. Then you find some information related to one movie which is a JSON formatted entry. To work with this format, install RJSONIO R package. You can access the data related to that movie by using the following codes with your API key.

library(RJSONIO)
movie1 <- fromJSON("http://www.omdbapi.com/?apikey=f7c004c&t=The+Godfather")
str(movie1)
List of 25
 $ Title     : chr "The Godfather"
 $ Year      : chr "1972"
 $ Rated     : chr "R"
 $ Released  : chr "24 Mar 1972"
 $ Runtime   : chr "175 min"
 $ Genre     : chr "Crime, Drama"
 $ Director  : chr "Francis Ford Coppola"
 $ Writer    : chr "Mario Puzo, Francis Ford Coppola"
 $ Actors    : chr "Marlon Brando, Al Pacino, James Caan"
 $ Plot      : chr "The aging patriarch of an organized crime dynasty in postwar New York City transfers control of his clandestine"| __truncated__
 $ Language  : chr "English, Italian, Latin"
 $ Country   : chr "United States"
 $ Awards    : chr "Won 3 Oscars. 31 wins & 30 nominations total"
 $ Poster    : chr "https://m.media-amazon.com/images/M/MV5BM2MyNjYxNmUtYTAwNi00MTYxLWJmNWYtYzZlODY3ZTk3OTFlXkEyXkFqcGdeQXVyNzkwMjQ"| __truncated__
 $ Ratings   :List of 3
  ..$ : Named chr [1:2] "Internet Movie Database" "9.2/10"
  .. ..- attr(*, "names")= chr [1:2] "Source" "Value"
  ..$ : Named chr [1:2] "Rotten Tomatoes" "97%"
  .. ..- attr(*, "names")= chr [1:2] "Source" "Value"
  ..$ : Named chr [1:2] "Metacritic" "100/100"
  .. ..- attr(*, "names")= chr [1:2] "Source" "Value"
 $ Metascore : chr "100"
 $ imdbRating: chr "9.2"
 $ imdbVotes : chr "1,823,905"
 $ imdbID    : chr "tt0068646"
 $ Type      : chr "movie"
 $ DVD       : chr "11 May 2004"
 $ BoxOffice : chr "$136,381,073"
 $ Production: chr "N/A"
 $ Website   : chr "N/A"
 $ Response  : chr "True"

Change the name of the movie, and get the relevant information.

library(RJSONIO)
movie2 <- fromJSON("http://www.omdbapi.com/?apikey=f7c004c&t=Suspiria")
str(movie2)
List of 25
 $ Title     : chr "Suspiria"
 $ Year      : chr "1977"
 $ Rated     : chr "R"
 $ Released  : chr "12 Aug 1977"
 $ Runtime   : chr "92 min"
 $ Genre     : chr "Horror"
 $ Director  : chr "Dario Argento"
 $ Writer    : chr "Dario Argento, Daria Nicolodi, Thomas De Quincey"
 $ Actors    : chr "Jessica Harper, Stefania Casini, Flavio Bucci"
 $ Plot      : chr "An American newcomer to a prestigious German ballet academy comes to realize that the school is a front for som"| __truncated__
 $ Language  : chr "Italian, Russian, English, German, Latin"
 $ Country   : chr "Italy"
 $ Awards    : chr "1 win & 3 nominations"
 $ Poster    : chr "https://m.media-amazon.com/images/M/MV5BZGRjNjljOGEtZjFmMi00YzU1LWIxOWYtZTQzODMzNDQzMzY1XkEyXkFqcGdeQXVyNDE5MTU"| __truncated__
 $ Ratings   :List of 3
  ..$ : Named chr [1:2] "Internet Movie Database" "7.3/10"
  .. ..- attr(*, "names")= chr [1:2] "Source" "Value"
  ..$ : Named chr [1:2] "Rotten Tomatoes" "93%"
  .. ..- attr(*, "names")= chr [1:2] "Source" "Value"
  ..$ : Named chr [1:2] "Metacritic" "79/100"
  .. ..- attr(*, "names")= chr [1:2] "Source" "Value"
 $ Metascore : chr "79"
 $ imdbRating: chr "7.3"
 $ imdbVotes : chr "92,516"
 $ imdbID    : chr "tt0076786"
 $ Type      : chr "movie"
 $ DVD       : chr "25 Sep 2007"
 $ BoxOffice : chr "N/A"
 $ Production: chr "N/A"
 $ Website   : chr "N/A"
 $ Response  : chr "True"

To get information easily from IMDB website, there is a new package called omdbapi, which can be downloaded from github as below:
devtools::install_github("hrbrmstr/omdbapi")

The functions related to this R package is given below:

  • find_by_id: To search IMDB ID

  • find_by_title: OMDB movie title search

  • get_actors: Get actors from an omdb movie

  • get_countries: Get countries from an omdb object

  • get_directors: Get directors from an omdb object

  • get_genres: Get genres from an omdb object

  • get_writers: Get writers from an omdb object

  • search_by_title: Lightweight OMDB title search

Find other details from here: https://github.com/hrbrmstr/omdbapi

For example, if you need to get the information related to Captain America use the following codes, and provide your API key when prompted.

library(omdbapi)
library(tidyverse)
search_by_title("Captain America")
                                         Title Year    imdbID   Type
1           Captain America: The First Avenger 2011 tt0458339  movie
2          Captain America: The Winter Soldier 2014 tt1843866  movie
3                   Captain America: Civil War 2016 tt3498820  movie
4                              Captain America 1990 tt0103923  movie
5                              Captain America 1979 tt0078937  movie
6           Captain America II: Death Too Soon 1979 tt0078938  movie
7  Iron Man and Captain America: Heroes United 2014 tt3911200  movie
8                              Captain America 1944 tt0036697  movie
9                              Captain America 1966 tt0206474 series
10              Captain America: Super Soldier 2011 tt1740721   game
                                                                                                                               Poster
1                                  https://m.media-amazon.com/images/M/MV5BMTYzOTc2NzU3N15BMl5BanBnXkFtZTcwNjY3MDE3NQ@@._V1_SX300.jpg
2                                  https://m.media-amazon.com/images/M/MV5BMzA2NDkwODAwM15BMl5BanBnXkFtZTgwODk5MTgzMTE@._V1_SX300.jpg
3                                  https://m.media-amazon.com/images/M/MV5BMjQ0MTgyNjAxMV5BMl5BanBnXkFtZTgwNjUzMDkyODE@._V1_SX300.jpg
4  https://m.media-amazon.com/images/M/MV5BYmRmYzA4NDItZmI3NS00NWIyLWIzZWEtNGIzZjZlYmY5MzE2XkEyXkFqcGdeQXVyMTEyNzgwMDUw._V1_SX300.jpg
5  https://m.media-amazon.com/images/M/MV5BZmFkZWE5ODYtNjVjNC00MWYwLWJlNTgtODRlMTcyMmQwM2IxXkEyXkFqcGdeQXVyMTYxNjkxOQ@@._V1_SX300.jpg
6  https://m.media-amazon.com/images/M/MV5BM2IwMWViYjAtODJhNy00MTEwLWExMzctZTUyODc4MTU4ZWY5XkEyXkFqcGdeQXVyMTEyNzgwMDUw._V1_SX300.jpg
7  https://m.media-amazon.com/images/M/MV5BMDIzMTIyYWEtYTAzZi00YzZjLTg5MGUtM2JiN2RjMDBjZmI3XkEyXkFqcGdeQXVyNjExODE1MDc@._V1_SX300.jpg
8  https://m.media-amazon.com/images/M/MV5BZjY4MjQ2MGMtYzNlMC00MGYwLWJlZjUtNjMxZWNhNDA5Y2UwXkEyXkFqcGdeQXVyNTc4Njg5MjA@._V1_SX300.jpg
9                                  https://m.media-amazon.com/images/M/MV5BMTM3NzE0NzU0N15BMl5BanBnXkFtZTcwNTAzMzYyMQ@@._V1_SX300.jpg
10                                 https://m.media-amazon.com/images/M/MV5BMTUwMzQ0NjE5N15BMl5BanBnXkFtZTgwODI3MzQxMTE@._V1_SX300.jpg

Working with Twitter API

A tutorial for getting APi from Twitter is given in this tutorial: https://cran.r-project.org/web/packages/rtweet/vignettes/auth.html

You have to install the rtweet and tidytext R packages to work with Twitter.

Many websites offer API. A big list can be found here: https://www.programmableweb.com/

Class work

  • The web site NY Times Best Sellers: Hardcover Fiction contains a list of best-selling fiction books. Scrape the names of these top books. The list of books are tagged via <h2>title</h2>.

  • Refer the tutorial https://www.earthdatascience.org/courses/earth-analytics/get-data-using-apis/use-twitter-api-r/ , and work with Twitter data.

More Details

  • Web Scraping: https://www.scrapingbee.com/blog/

  • Web Scraping with R: https://steviep42.github.io/webscraping/book/

  • Web Scraping in R: https://www.scraperapi.com/blog/web-scraping-with-r/

  • Introduction to Data scraping with R : https://stat2labs.sites.grinnell.edu/Handouts/rtutorials/IntroDataScraping.html

  • Facebook API: https://elfsight.com/blog/2020/10/how-to-get-and-use-facebook-api/

  • The twitter API in R : https://dgarcia-eu.github.io/SocialDataScience/2_SocialDynamics/027_rtweet/rtweet.html

  • Pulling tweets in to R: https://towardsdatascience.com/pulling-tweets-into-r-e17d4981cfe2

  • EarthLab Twitter data: https://www.earthdatascience.org/courses/earth-analytics/get-data-using-apis/use-twitter-api-r/

  • Accessing weather data: https://github.com/hrbrmstr/weatherkit
